Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Pollution degree3
Rated current10A
Release characteristicK
Power loss5.4W
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Number of protected poles2
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Rated voltage440V
Current limiting class3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

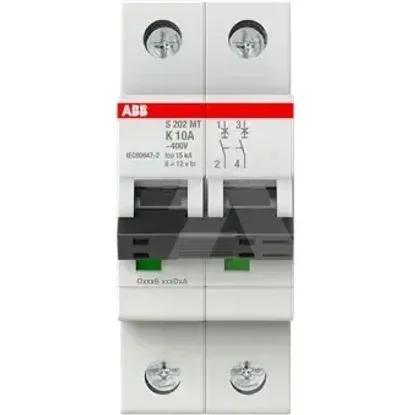

2CDS272445R0427 | S202MT-K10
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Built-in depth
69mm
Frequency
50 .. 60Hz
Pollution degree
3
Rated current
10A
Release characteristic
K
Power loss
5.4W
Ambient temperature during operating
-40 .. 70°C
Explosion-proof
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
2
Width in number of modular spacings
2.0
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Additional equipment possible
Rated insulation voltage Ui
440V
Connectable conductor cross section solid-core
0.75 .. 35mm²
Flush-mounted installation
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Number of poles (total)
2
Rated voltage
440V
Current limiting class
3
