Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Explosion-proofNo
Current limiting class3
Over voltage category3
Power loss4.4W
Rated current16A
Frequency50 - 60Hz
Release characteristicK
Width in number of modular spacings2.0
Rated voltage440V
Voltage typeOther
Pollution degree3
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Number of protected poles2
Concurrently switching neutral conductorNo
Built-in depth69mm
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

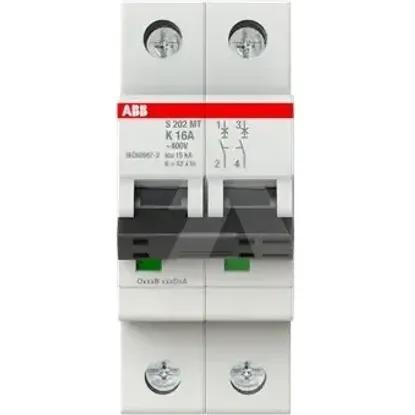

2CDS272445R0467 | S202MT-K16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Explosion-proof
Current limiting class
3
Over voltage category
3
Power loss
4.4W
Rated current
16A
Frequency
50 .. 60Hz
Release characteristic
K
Width in number of modular spacings
2.0
Rated voltage
440V
Voltage type
Other
Pollution degree
3
Rated insulation voltage Ui
440V
Degree of protection (IP)
IP20
Number of protected poles
2
Concurrently switching neutral conductor
Built-in depth
69mm
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Ambient temperature during operating
-40 .. 70°C
Flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
