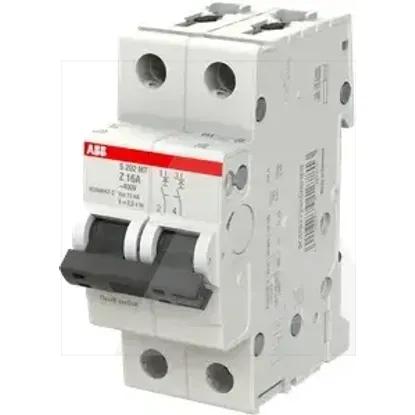

2CDS272445R0468 | S202MT-Z16
Code: 2002954
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss6.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current16A
Number of protected poles2
Voltage typeOther
Release characteristicZ
Frequency50 - 60Hz
Built-in depth69mm
Current limiting class3
Number of poles (total)2
Rated insulation voltage Ui440V
Flush-mounted installationNo
Width in number of modular spacings2.0
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Over voltage category3
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272445R0468 | S202MT-Z16
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated voltage
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Power loss
6.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated current
16A
Number of protected poles
2
Voltage type
Other
Release characteristic
Z
Frequency
50 .. 60Hz
Built-in depth
69mm
Current limiting class
3
Number of poles (total)
2
Rated insulation voltage Ui
440V
Flush-mounted installation
Width in number of modular spacings
2.0
Pollution degree
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
Concurrently switching neutral conductor
Additional equipment possible
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Over voltage category
3
Ambient temperature during operating
-40 .. 70°C
Explosion-proof
Degree of protection (IP)
IP20
