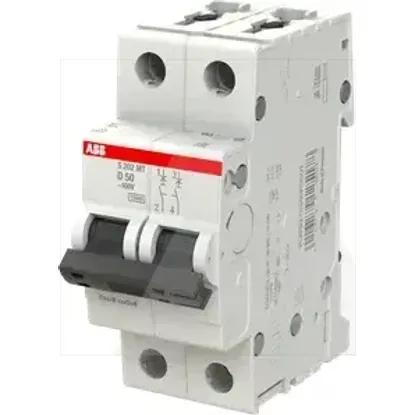

2CDS272445R0501 | S202MT-D50
Code: 2002957
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)2
Rated current50A
Rated voltage400V
Number of protected poles2
Rated insulation voltage Ui440V
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Power loss7.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Release characteristicD
Current limiting class3
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings2.0
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
