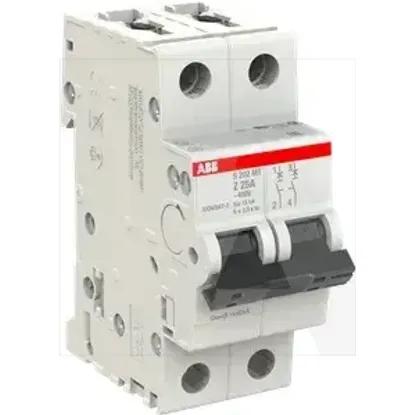

2CDS272445R0518 | S202MT-Z25
Code: 2002961
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)2
Release characteristicZ
Rated current25A
Built-in depth69mm
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated voltage440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss6.6W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Over voltage category3
Width in number of modular spacings2.0
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
