Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Explosion-proofNo
Power loss7W
Rated current30A
Pollution degree3
Rated insulation voltage Ui440V
Built-in depth69mm
Degree of protection (IP)IP20
Rated voltage440V
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Voltage typeOther
Over voltage category3
Current limiting class3
Width in number of modular spacings2.0
Release characteristicZ
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)2
Flush-mounted installationNo
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

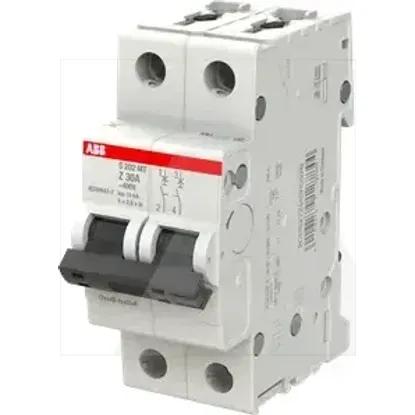

2CDS272445R0528 | S202MT-Z30
