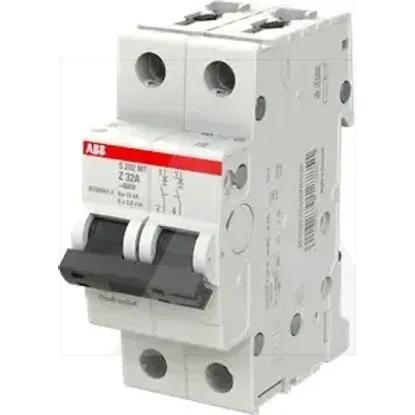

2CDS272445R0538 | S202MT-Z32
Code: 2002965
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Release characteristicZ
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Built-in depth69mm
Number of poles (total)2
Number of protected poles2
Rated current32A
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Voltage typeOther
Rated voltage440V
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss8.4W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Pollution degree3
Flush-mounted installationNo
Over voltage category3
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
