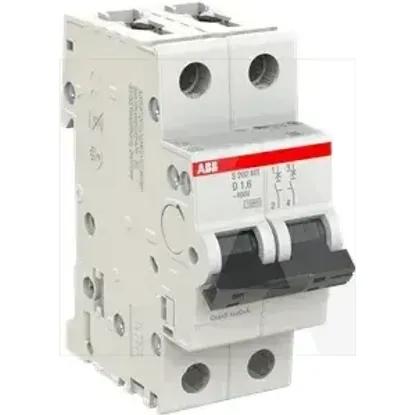

2CDS272445R0971 | S202MT-D1,6
Code: 2002982
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated voltage400V
Rated insulation voltage Ui440V
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Release characteristicD
Rated current1.6A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Current limiting class3
Number of protected poles2
Power loss3W
Concurrently switching neutral conductorNo
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings2.0
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Flush-mounted installationNo
Explosion-proofNo
Additional equipment possibleYes
