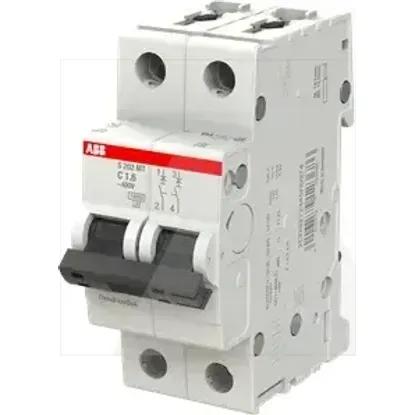

2CDS272445R0974 | S202MT-C1,6
Code: 2002983
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Voltage typeOther
Rated voltage400V
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Rated current1.6A
Number of poles (total)2
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss3.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Release characteristicC
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Over voltage category3
Width in number of modular spacings2.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272445R0974 | S202MT-C1,6
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
440V
Voltage type
Other
Rated voltage
400V
Built-in depth
69mm
Rated impulse withstand voltage Uimp
4kV
Rated current
1.6A
Number of poles (total)
2
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Number of protected poles
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Power loss
3.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Release characteristic
C
Additional equipment possible
Concurrently switching neutral conductor
Flush-mounted installation
Over voltage category
3
Width in number of modular spacings
2.0
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Pollution degree
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
Explosion-proof
Ambient temperature during operating
-40 .. 70°C
Degree of protection (IP)
IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
