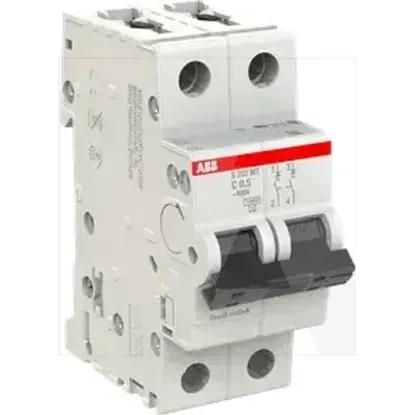

2CDS272445R0984 | S202MT-C0,5
Code: 2002985
ManufacturerABB
Catalog number2CDS272445R0984
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123662
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Frequency50 - 60Hz
Current limiting class3
Over voltage category3
Voltage typeOther
Rated voltage400V
Width in number of modular spacings2
Rated insulation voltage Ui440V
Built-in depth69mm
Pollution degree3
Explosion-proofNo
Power loss2.8W
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current0.5A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
