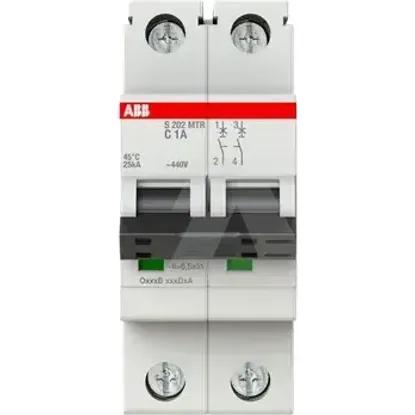

2CDS272447R0014 | S202MTR-C1
Code: 2002986
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated insulation voltage Ui440V
Rated current1A
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Release characteristicC
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated voltage440V
Frequency50 - 60Hz
Power loss2.9W
Built-in depth69mm
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Additional equipment possibleYes
Pollution degree3
Explosion-proofNo
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 75°C
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272447R0014 | S202MTR-C1
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated insulation voltage Ui
440V
Rated current
1A
Rated impulse withstand voltage Uimp
4kV
Number of poles (total)
2
Release characteristic
C
Number of protected poles
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated voltage
440V
Frequency
50 .. 60Hz
Power loss
2.9W
Built-in depth
69mm
Voltage type
Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Additional equipment possible
Pollution degree
3
Explosion-proof
Degree of protection (IP)
IP20
Width in number of modular spacings
2.0
Flush-mounted installation
Concurrently switching neutral conductor
Ambient temperature during operating
-40 .. 75°C
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
