Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated insulation voltage Ui440V
Number of protected poles2
Voltage typeOther
Rated voltage440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Release characteristicC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current13A
Number of poles (total)2
Frequency50 - 60Hz
Power loss4.3W
Current limiting class3
Additional equipment possibleYes
Over voltage category3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

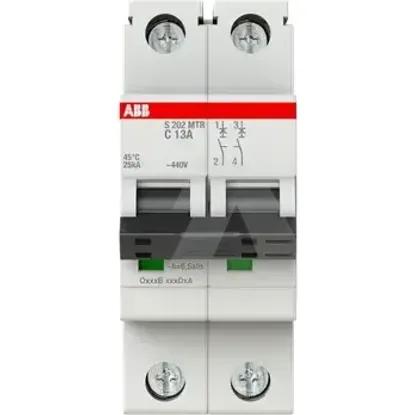

2CDS272447R0134 | S202MTR-C13
