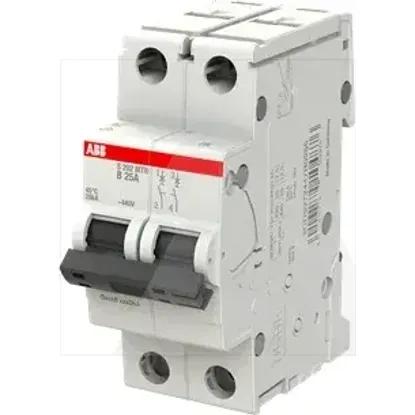

2CDS272447R0255 | S202MTR-B25
Code: 2003006
ManufacturerABB
Catalog number2CDS272447R0255
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104876
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Width in number of modular spacings2
Built-in depth69mm
Pollution degree3
Voltage typeOther
Over voltage category3
Current limiting class3
Rated voltage440V
Explosion-proofNo
Power loss5.5W
Degree of protection (IP)IP20
Frequency50 - 60Hz
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Ambient temperature during operating-40 - 75°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated current25A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
