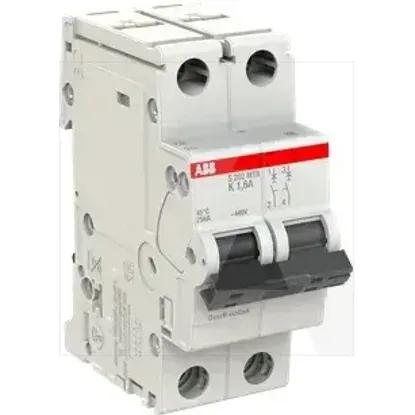

2CDS272447R0257 | S202MTR-K1,6
Code: 2003007
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Number of poles (total)2
Built-in depth69mm
Number of protected poles2
Rated current1.6A
Rated insulation voltage Ui440V
Voltage typeOther
Rated voltage440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Current limiting class3
Power loss2.6W
Flush-mounted installationNo
Over voltage category3
Width in number of modular spacings2.0
Pollution degree3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
