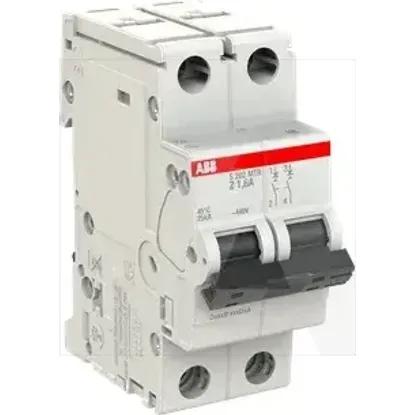

2CDS272447R0258 | S202MTR-Z1,6
Code: 2003008
ManufacturerABB
Catalog number2CDS272447R0258
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104890
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage440V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Explosion-proofNo
Width in number of modular spacings2
Over voltage category3
Pollution degree3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss5.6W
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Ambient temperature during operating-40 - 75°C
Rated current1.6A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
