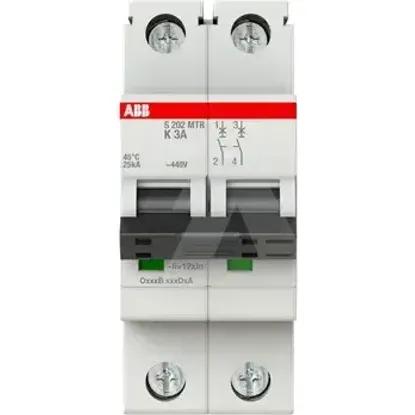

2CDS272447R0317 | S202MTR-K3
Code: 2003011
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)2
Release characteristicK
Number of protected poles2
Rated voltage440V
Rated current3A
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Power loss2.5W
Frequency50 - 60Hz
Degree of protection (IP)IP20
Additional equipment possibleYes
Pollution degree3
Concurrently switching neutral conductorNo
Width in number of modular spacings2.0
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
