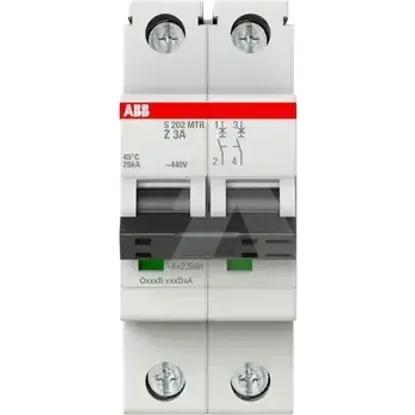

2CDS272447R0318 | S202MTR-Z3
Code: 2003012
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)2
Release characteristicZ
Rated current3A
Number of protected poles2
Rated voltage440V
Rated insulation voltage Ui440V
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Power loss4.9W
Frequency50 - 60Hz
Current limiting class3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Pollution degree3
Flush-mounted installationNo
Over voltage category3
Additional equipment possibleYes
Width in number of modular spacings2.0
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272447R0318 | S202MTR-Z3
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
69mm
Number of poles (total)
2
Release characteristic
Z
Rated current
3A
Number of protected poles
2
Rated voltage
440V
Rated insulation voltage Ui
440V
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Power loss
4.9W
Frequency
50 .. 60Hz
Current limiting class
3
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Pollution degree
3
Flush-mounted installation
Over voltage category
3
Additional equipment possible
Width in number of modular spacings
2.0
Ambient temperature during operating
-40 .. 75°C
Connectable conductor cross section solid-core
0.75 .. 35mm²
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
