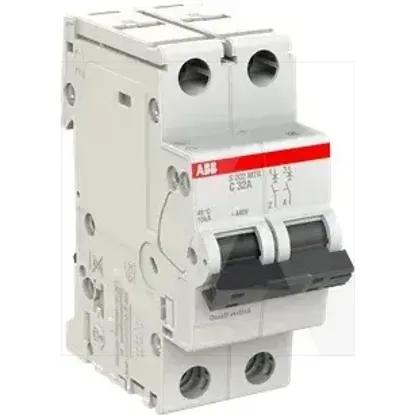

2CDS272447R0324 | S202MTR-C32
Code: 2003013
ManufacturerABB
Catalog number2CDS272447R0324
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104906
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Explosion-proofNo
Rated voltage440V
Pollution degree3
Current limiting class3
Power loss7.4W
Over voltage category3
Rated insulation voltage Ui440V
Width in number of modular spacings2
Flush-mounted installationNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current32A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
