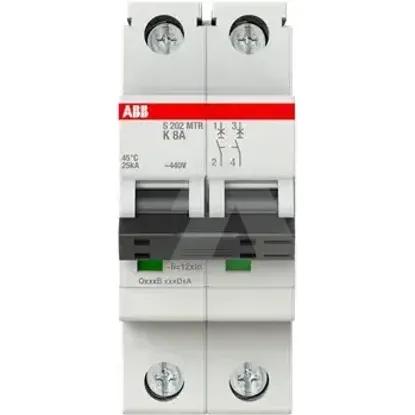

2CDS272447R0407 | S202MTR-K8
Code: 2003021
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Built-in depth69mm
Number of protected poles2
Rated voltage440V
Release characteristicK
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Number of poles (total)2
Rated current8A
Power loss2.4W
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Flush-mounted installationNo
Additional equipment possibleYes
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Width in number of modular spacings2.0
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Explosion-proofNo
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272447R0407 | S202MTR-K8
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
440V
Built-in depth
69mm
Number of protected poles
2
Rated voltage
440V
Release characteristic
K
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Voltage type
Other
Number of poles (total)
2
Rated current
8A
Power loss
2.4W
Rated impulse withstand voltage Uimp
4kV
Frequency
50 .. 60Hz
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Flush-mounted installation
Additional equipment possible
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Ambient temperature during operating
-40 .. 75°C
Width in number of modular spacings
2.0
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Explosion-proof
Over voltage category
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
