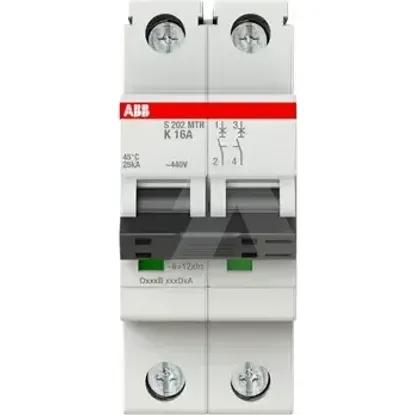

2CDS272447R0467 | S202MTR-K16
Code: 2003026
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage440V
Rated current16A
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Number of protected poles2
Release characteristicK
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Current limiting class3
Built-in depth69mm
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Voltage typeOther
Power loss4W
Frequency50 - 60Hz
Explosion-proofNo
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Pollution degree3
Over voltage category3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272447R0467 | S202MTR-K16
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
440V
Rated current
16A
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Number of protected poles
2
Release characteristic
K
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Current limiting class
3
Built-in depth
69mm
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Voltage type
Other
Power loss
4W
Frequency
50 .. 60Hz
Explosion-proof
Concurrently switching neutral conductor
Flush-mounted installation
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 75°C
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Additional equipment possible
Degree of protection (IP)
IP20
Width in number of modular spacings
2.0
Pollution degree
3
Over voltage category
3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
