Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated voltage
440V
Rated current
63A
Release characteristic
C
Rated insulation voltage Ui
440V
Number of protected poles
2
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Power loss
10.4W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Frequency
50 - 60Hz
Built-in depth
69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Current limiting class
3
Voltage type
Other
Pollution degree
3
Additional equipment possible
Yes
Ambient temperature during operating
-40 - 75°C
Over voltage category
3
Flush-mounted installation
No
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
No
Width in number of modular spacings
2.0
Connectable conductor cross section multi-wired
0.75 - 25mm²
Connectable conductor cross section solid-core
0.75 - 35mm²
Explosion-proof
No
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

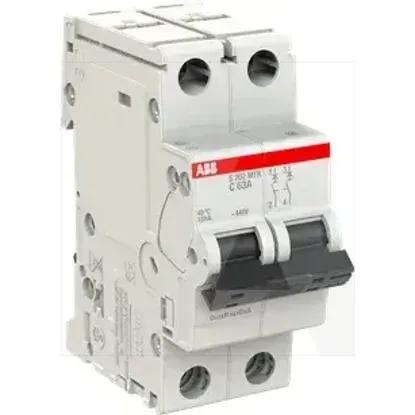

2CDS272447R0634 | S202MTR-C63
