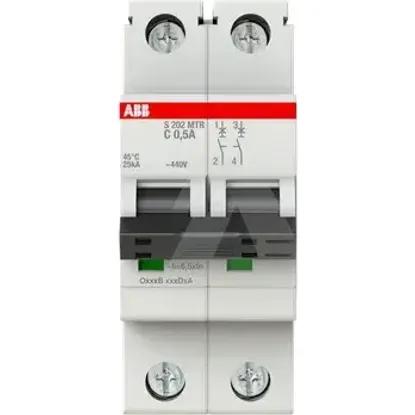

2CDS272447R0984 | S202MTR-C0,5
Code: 2003045
ManufacturerABB
Catalog number2CDS272447R0984
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105224
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Degree of protection (IP)IP20
Current limiting class3
Voltage typeOther
Number of protected poles2
Over voltage category3
Power loss2.6W
Rated insulation voltage Ui440V
Explosion-proofNo
Frequency50 - 60Hz
Width in number of modular spacings2
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Rated voltage440V
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current0.5A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
