Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage440V
Power loss3.4W
Frequency50 - 60Hz
Degree of protection (IP)IP20
Current limiting class3
Rated insulation voltage Ui440V
Over voltage category3
Width in number of modular spacings2.0
Pollution degree3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Explosion-proofNo
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current6A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

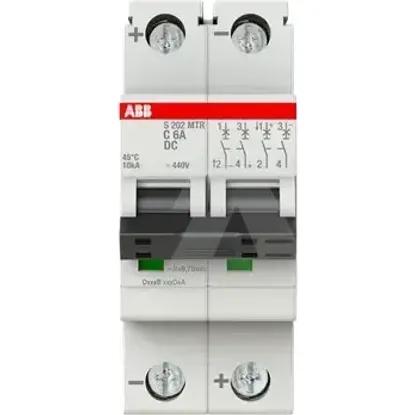

2CDS272565R0064 | S202MTR-C6 DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Built-in depth
69mm
Rated voltage
440V
Power loss
3.4W
Frequency
50 .. 60Hz
Degree of protection (IP)
IP20
Current limiting class
3
Rated insulation voltage Ui
440V
Over voltage category
3
Width in number of modular spacings
2.0
Pollution degree
3
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Additional equipment possible
Number of protected poles
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
Flush-mounted installation
Explosion-proof
Ambient temperature during operating
-40 .. 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Rated current
6A
Release characteristic
C
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
