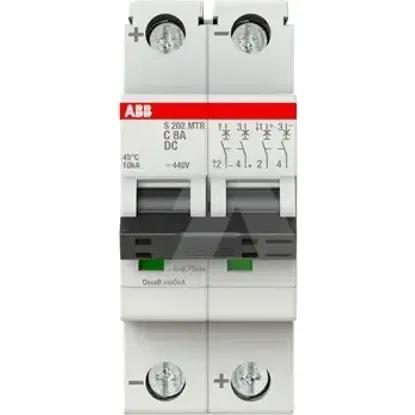

2CDS272565R0084 | S202MTR-C8 DC
Code: 2003052
ManufacturerABB
Catalog number2CDS272565R0084
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779121552
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage440V
Rated insulation voltage Ui440V
Current limiting class3
Frequency50 - 60Hz
Over voltage category3
Width in number of modular spacings2
Explosion-proofNo
Power loss2.7W
Degree of protection (IP)IP20
Pollution degree3
Additional equipment possibleYes
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current8A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
