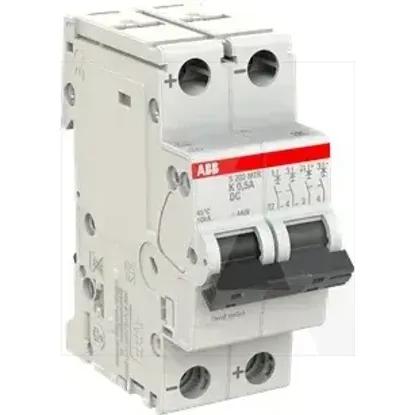

2CDS272565R0157 | S202MTR-K0,5 DC
Code: 2003057
ManufacturerABB
Catalog number2CDS272565R0157
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779121538
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage440V
Rated insulation voltage Ui440V
Built-in depth69mm
Current limiting class3
Pollution degree3
Frequency50 - 60Hz
Voltage typeOther
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Width in number of modular spacings2
Number of protected poles2
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 75°C
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss2.2W
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current0.5A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
