Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current1A
Release characteristicK
Rated voltage440V
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Number of protected poles2
Built-in depth69mm
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Current limiting class3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Number of poles (total)2
Power loss2.6W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Over voltage category3
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

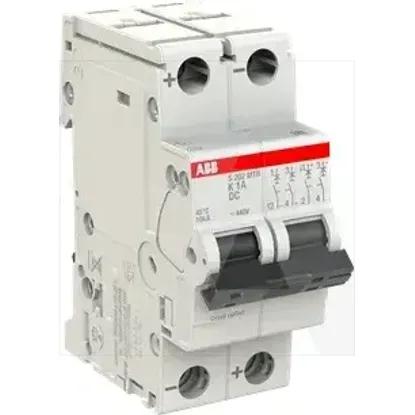

2CDS272565R0217 | S202MTR-K1 DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated current
1A
Release characteristic
K
Rated voltage
440V
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Number of protected poles
2
Built-in depth
69mm
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Current limiting class
3
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Number of poles (total)
2
Power loss
2.6W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Flush-mounted installation
Width in number of modular spacings
2.0
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Over voltage category
3
Additional equipment possible
Ambient temperature during operating
-40 .. 75°C
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
Explosion-proof
