Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Connectable conductor cross section solid-core0.75 - 35mm²
Voltage typeOther
Release characteristicZ
Built-in depth69mm
Power loss5W
Explosion-proofNo
Rated current1A
Width in number of modular spacings2.0
Rated voltage440V
Pollution degree3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Current limiting class3
Over voltage category3
Number of protected poles2
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

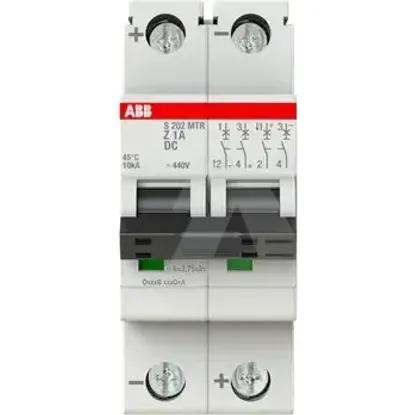

2CDS272565R0218 | S202MTR-Z1 DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Connectable conductor cross section solid-core
0.75 .. 35mm²
Voltage type
Other
Release characteristic
Z
Built-in depth
69mm
Power loss
5W
Explosion-proof
Rated current
1A
Width in number of modular spacings
2.0
Rated voltage
440V
Pollution degree
3
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Current limiting class
3
Over voltage category
3
Number of protected poles
2
Frequency
50 .. 60Hz
Rated insulation voltage Ui
440V
Ambient temperature during operating
-40 .. 75°C
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Additional equipment possible
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Number of poles (total)
2
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
