Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated current3A
Frequency50 - 60Hz
Width in number of modular spacings2.0
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Rated voltage440V
Over voltage category3
Release characteristicK
Explosion-proofNo
Current limiting class3
Pollution degree3
Power loss2.5W
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Number of protected poles2
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

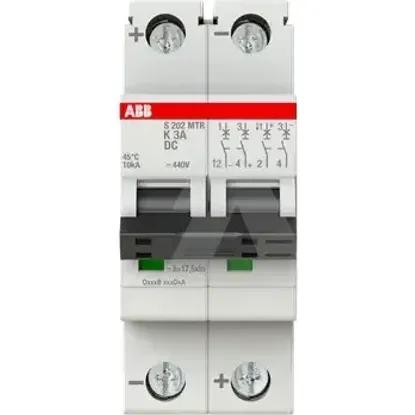

2CDS272565R0317 | S202MTR-K3 DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Built-in depth
69mm
Rated current
3A
Frequency
50 .. 60Hz
Width in number of modular spacings
2.0
Rated insulation voltage Ui
440V
Degree of protection (IP)
IP20
Rated voltage
440V
Over voltage category
3
Release characteristic
K
Explosion-proof
Current limiting class
3
Pollution degree
3
Power loss
2.5W
Connectable conductor cross section solid-core
0.75 .. 35mm²
Concurrently switching neutral conductor
Number of protected poles
2
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Ambient temperature during operating
-40 .. 75°C
Flush-mounted installation
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
