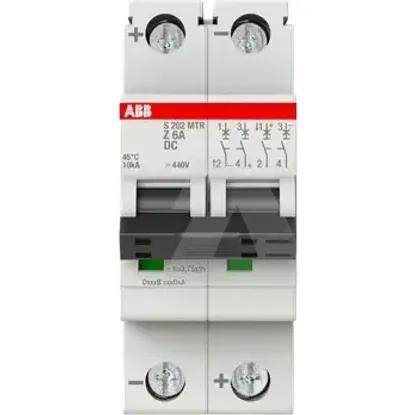

2CDS272565R0378 | S202MTR-Z6 DC
Code: 2003078
ManufacturerABB
Catalog number2CDS272565R0378
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136556
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Frequency50 - 60Hz
Voltage typeOther
Rated voltage440V
Explosion-proofNo
Over voltage category3
Pollution degree3
Rated insulation voltage Ui440V
Current limiting class3
Power loss5.2W
Degree of protection (IP)IP20
Width in number of modular spacings2
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles2
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current6A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
