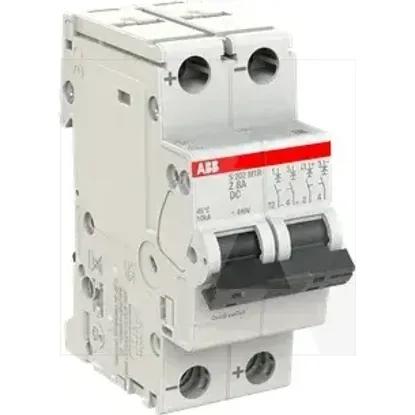

2CDS272565R0408 | S202MTR-Z8 DC
Code: 2003082
ManufacturerABB
Catalog number2CDS272565R0408
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136532
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Concurrently switching neutral conductorNo
Voltage typeOther
Width in number of modular spacings2
Explosion-proofNo
Current limiting class3
Number of protected poles2
Pollution degree3
Degree of protection (IP)IP20
Frequency50 - 60Hz
Power loss3.9W
Rated voltage440V
Rated insulation voltage Ui440V
Built-in depth69mm
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current8A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
