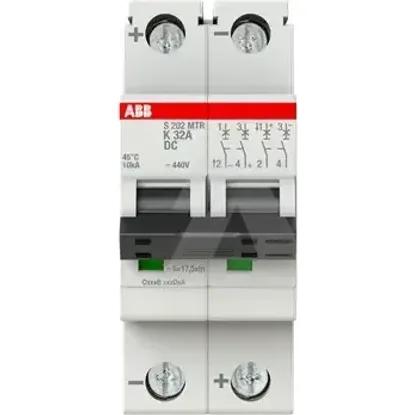

2CDS272565R0537 | S202MTR-K32 DC
Code: 2003094
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Rated current32A
Number of protected poles2
Number of poles (total)2
Built-in depth69mm
Rated voltage440V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Frequency50 - 60Hz
Power loss7.5W
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Width in number of modular spacings2.0
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Over voltage category3
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Flush-mounted installationNo
