Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Release characteristicZ
Voltage typeOther
Rated current32A
Frequency50 - 60Hz
Rated voltage440V
Explosion-proofNo
Pollution degree3
Rated insulation voltage Ui440V
Current limiting class3
Over voltage category3
Degree of protection (IP)IP20
Power loss8.1W
Width in number of modular spacings2.0
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

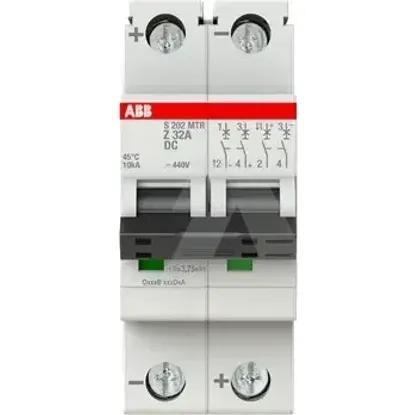

2CDS272565R0538 | S202MTR-Z32 DC
