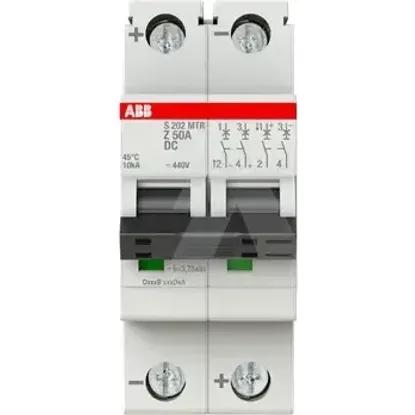

2CDS272565R0578 | S202MTR-Z50 DC
Code: 2003099
ManufacturerABB
Catalog number2CDS272565R0578
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136426
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Over voltage category3
Built-in depth69mm
Degree of protection (IP)IP20
Frequency50 - 60Hz
Power loss8.8W
Width in number of modular spacings2
Rated insulation voltage Ui440V
Pollution degree3
Explosion-proofNo
Rated voltage440V
Current limiting class3
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of protected poles2
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current50A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
