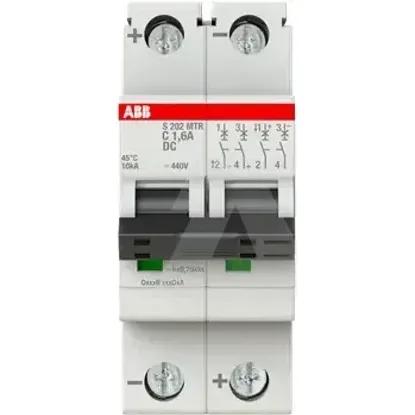

2CDS272565R0974 | S202MTR-C1,6 DC
Code: 2003104
ManufacturerABB
Catalog number2CDS272565R0974
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136396
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage440V
Built-in depth69mm
Frequency50 - 60Hz
Current limiting class3
Explosion-proofNo
Voltage typeOther
Over voltage category3
Rated insulation voltage Ui440V
Number of protected poles2
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Pollution degree3
Power loss2.7W
Width in number of modular spacings2
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current1.6A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
