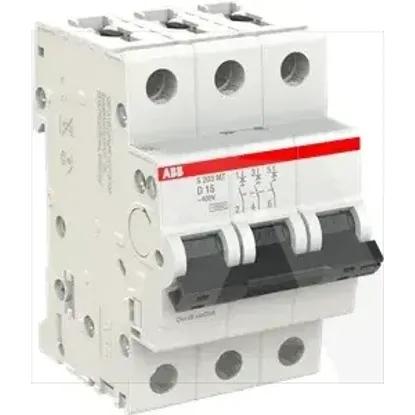

2CDS273445R0151 | S203MT-D15
Code: 2003302
ManufacturerABB
Catalog number2CDS273445R0151
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779125314
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated voltage400V
Built-in depth69mm
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Flush-mounted installationNo
Current limiting class3
Width in number of modular spacings3
Explosion-proofNo
Pollution degree3
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss-W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Over voltage category3
Number of protected poles3
Rated impulse withstand voltage Uimp4kV
Rated current15A
Release characteristicD
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
