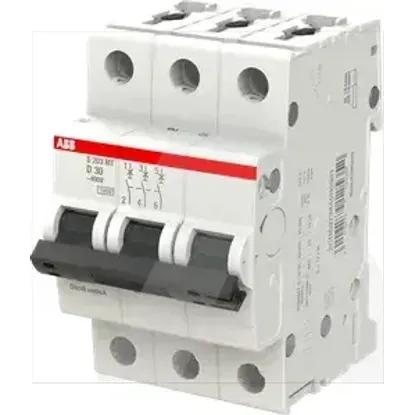

2CDS273445R0301 | S203MT-D30
Code: 2003323
ManufacturerABB
Catalog number2CDS273445R0301
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779125352
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Rated voltage400V
Pollution degree3
Power loss-W
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Additional equipment possibleYes
Number of protected poles3
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Width in number of modular spacings3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Degree of protection (IP)IP20
Rated current30A
Release characteristicD
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
