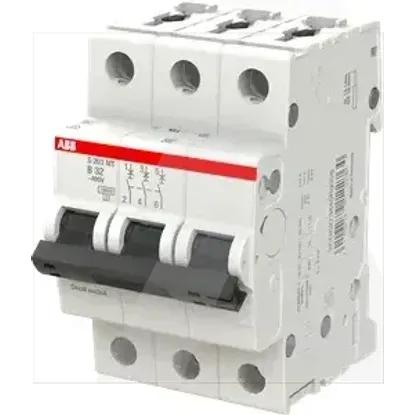

2CDS273445R0325 | S203MT-B32
Code: 2003330
ManufacturerABB
Catalog number2CDS273445R0325
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122764
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Over voltage category3
Pollution degree3
Rated voltage400V
Voltage typeOther
Frequency50 - 60Hz
Current limiting class3
Rated insulation voltage Ui440V
Explosion-proofNo
Width in number of modular spacings3
Power loss11.1W
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Number of protected poles3
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Rated current32A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
