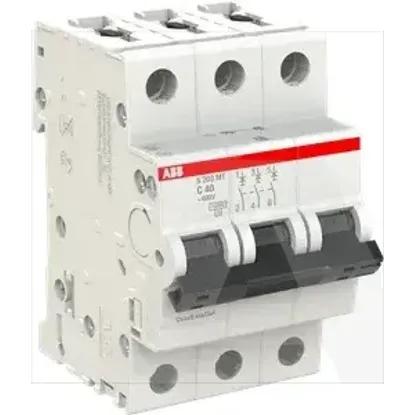

2CDS273445R0404 | S203MT-C40
Code: 2003341
ManufacturerABB
Catalog number2CDS273445R0404
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779124065
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Rated voltage400V
Built-in depth69mm
Degree of protection (IP)IP20
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss14.4W
Explosion-proofNo
Rated insulation voltage Ui440V
Over voltage category3
Ambient temperature during operating-40 - 70°C
Current limiting class3
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Number of protected poles3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated current40A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
