Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated current40A
Rated voltage440V
Pollution degree3
Over voltage category3
Rated insulation voltage Ui440V
Release characteristicZ
Current limiting class3
Frequency50 - 60Hz
Voltage typeOther
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles3
Width in number of modular spacings3.0
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 70°C
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Power loss13.5W
Flush-mounted installationNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

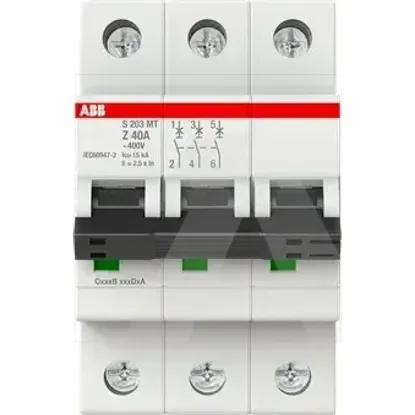

2CDS273445R0558 | S203MT-Z40
