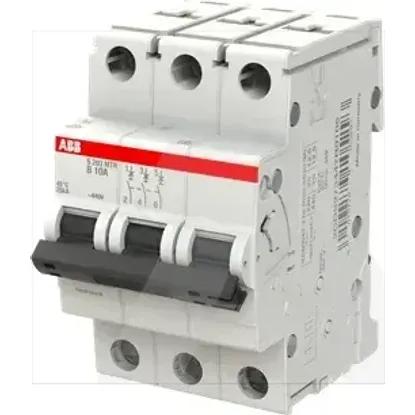

2CDS273447R0105 | S203MTR-B10
Code: 2003503
ManufacturerABB
Catalog number2CDS273447R0105
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105293
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated insulation voltage Ui440V
Rated voltage440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Power loss7.2W
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Number of protected poles3
Frequency50 - 60Hz
Over voltage category3
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Degree of protection (IP)IP20
Flush-mounted installationNo
Width in number of modular spacings3
Ambient temperature during operating-40 - 75°C
Current limiting class3
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Pollution degree3
Rated current10A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
