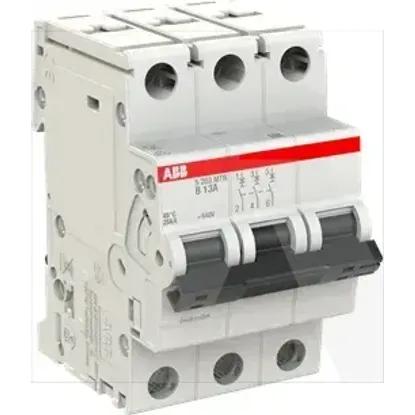

2CDS273447R0135 | S203MTR-B13
Code: 2003505
ManufacturerABB
Catalog number2CDS273447R0135
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105316
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated voltage440V
Width in number of modular spacings3
Over voltage category3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Current limiting class3
Number of protected poles3
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Frequency50 - 60Hz
Ambient temperature during operating-40 - 75°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Pollution degree3
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Power loss7.7W
Rated current13A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
