Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)3
Voltage typeOther
Rated insulation voltage Ui440V
Release characteristicK
Rated current0.5A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Built-in depth69mm
Rated voltage440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Current limiting class3
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Frequency50 - 60Hz
Power loss3.4W
Connectable conductor cross section solid-core0.75 - 35mm²
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Flush-mounted installationNo
Width in number of modular spacings3.0
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Pollution degree3
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 75°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

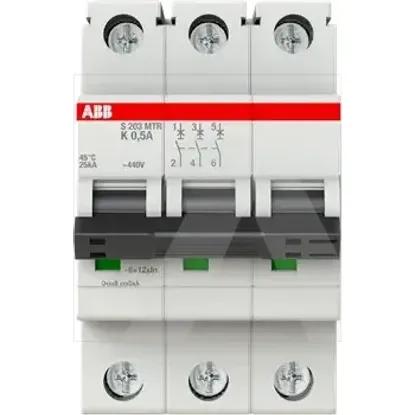

2CDS273447R0157 | S203MTR-K0,5
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles (total)
3
Voltage type
Other
Rated insulation voltage Ui
440V
Release characteristic
K
Rated current
0.5A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Built-in depth
69mm
Rated voltage
440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Current limiting class
3
Number of protected poles
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Frequency
50 .. 60Hz
Power loss
3.4W
Connectable conductor cross section solid-core
0.75 .. 35mm²
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
Flush-mounted installation
Width in number of modular spacings
3.0
Additional equipment possible
Concurrently switching neutral conductor
Pollution degree
3
Degree of protection (IP)
IP20
Ambient temperature during operating
-40 .. 75°C
