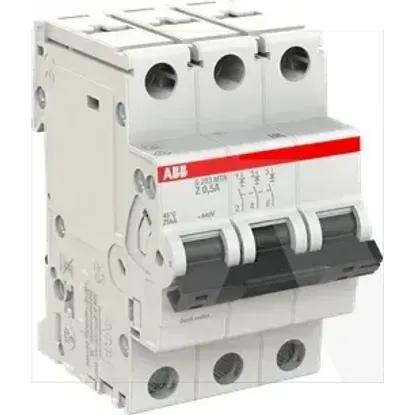

2CDS273447R0158 | S203MTR-Z0,5
Code: 2003507
ManufacturerABB
Catalog number2CDS273447R0158
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105330
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage440V
Built-in depth69mm
Voltage typeOther
Frequency50 - 60Hz
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Power loss7.1W
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Width in number of modular spacings3
Explosion-proofNo
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Number of protected poles3
Rated current0.5A
Release characteristicZ
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
