Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Frequency50 - 60Hz
Voltage typeOther
Rated voltage440V
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Power loss11W
Pollution degree3
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings3.0
Rated insulation voltage Ui440V
Over voltage category3
Additional equipment possibleYes
Number of protected poles3
Rated current32A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

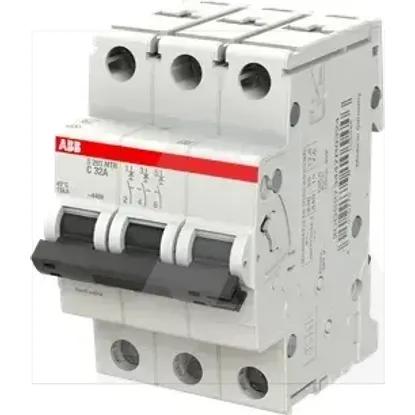

2CDS273447R0324 | S203MTR-C32
