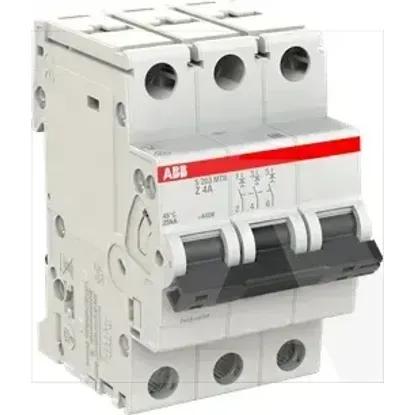

2CDS273447R0338 | S203MTR-Z4
Code: 2003525
ManufacturerABB
Catalog number2CDS273447R0338
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105477
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Frequency50 - 60Hz
Built-in depth69mm
Rated voltage440V
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Current limiting class3
Pollution degree3
Over voltage category3
Rated insulation voltage Ui440V
Number of protected poles3
Explosion-proofNo
Width in number of modular spacings3
Power loss7.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current4A
Release characteristicZ
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
