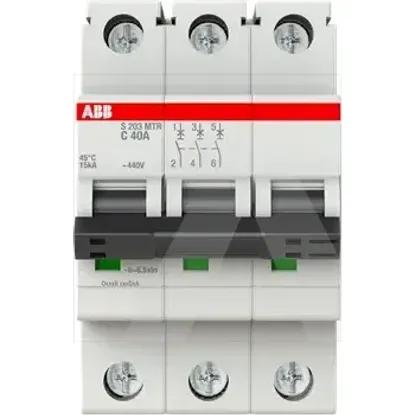

2CDS273447R0404 | S203MTR-C40
Code: 2003528
ManufacturerABB
Catalog number2CDS273447R0404
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779137010
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage440V
Current limiting class3
Power loss12.3W
Explosion-proofNo
Rated insulation voltage Ui440V
Width in number of modular spacings3
Frequency50 - 60Hz
Connectable conductor cross section multi-wired0.75 - 25mm²
Over voltage category3
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Number of protected poles3
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current40A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
