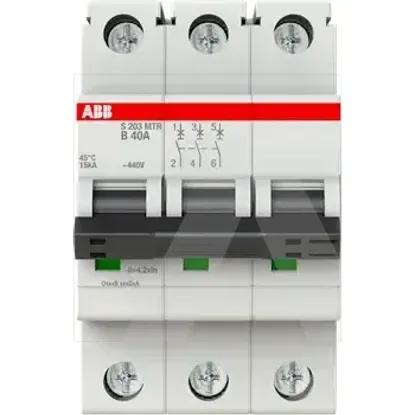

2CDS273447R0405 | S203MTR-B40
Code: 2003529
ManufacturerABB
Catalog number2CDS273447R0405
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105514
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage440V
Current limiting class3
Ambient temperature during operating-40 - 75°C
Number of protected poles3
Degree of protection (IP)IP20
Power loss12.1W
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Flush-mounted installationNo
Over voltage category3
Explosion-proofNo
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Frequency50 - 60Hz
Rated current40A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
