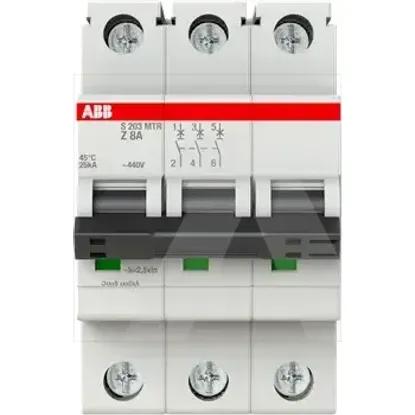

2CDS273447R0408 | S203MTR-Z8
Code: 2003531
ManufacturerABB
Catalog number2CDS273447R0408
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105538
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Frequency50 - 60Hz
Over voltage category3
Voltage typeOther
Rated insulation voltage Ui440V
Width in number of modular spacings3
Current limiting class3
Rated voltage440V
Pollution degree3
Built-in depth69mm
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Explosion-proofNo
Degree of protection (IP)IP20
Power loss5.8W
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated current8A
Release characteristicZ
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
