Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated current16A
Rated voltage440V
Frequency50 - 60Hz
Pollution degree3
Number of poles (total)3
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings3.0
Additional equipment possibleYes
Over voltage category3
Current limiting class3
Degree of protection (IP)IP20
Explosion-proofNo
Number of protected poles3
Power loss6W
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Rated insulation voltage Ui440V
Release characteristicK
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

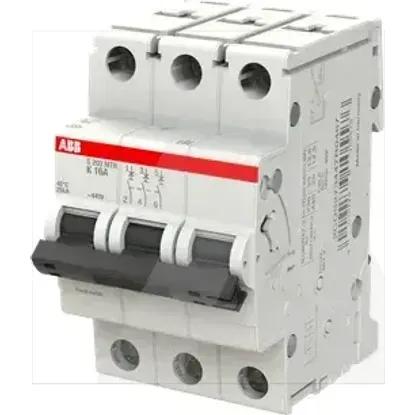

2CDS273447R0467 | S203MTR-K16
