Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Number of protected poles3
Number of poles (total)3
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Current limiting class3
Frequency50 - 60Hz
Rated current50A
Release characteristicC
Power loss10.9W
Rated voltage440V
Over voltage category3
Flush-mounted installationNo
Pollution degree3
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 75°C
Width in number of modular spacings3.0
Explosion-proofNo
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

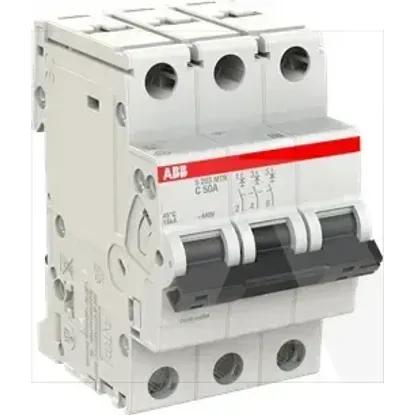

2CDS273447R0504 | S203MTR-C50
